Smoke Detector Wiring 101 | DoItYourself.com

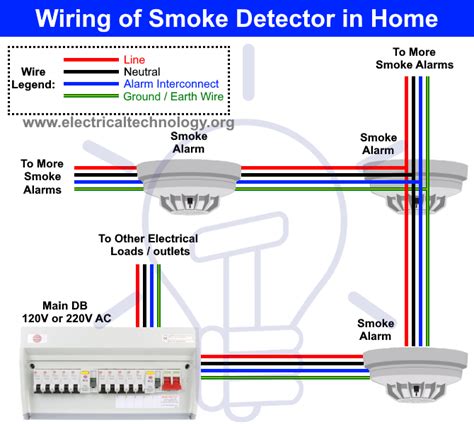

A hardwired smoke alarm installation involves wiring one of the smoke detectors (closest to the voltage source) to a 120 VAC breaker in the main electric panel or tapping from a 120 V electrical box, wiring it using a 14/2 cable with a black (live), a white (neutral), and a ground wire, as shown by the diagram in Figure 5.

How to Wire Smoke Detector. Red Wire?

What is the red wire used for on smoke detector? What is interconnect? Why do I only have 2 wires connecting? What do do with the 3rd wire on smoke detector?...

How To Wire Smoke Detectors Together – Protect America Blog

Finding a Place for Your Smoke Detectors. If you don’t have a setup, you’ll first need to mark off areas for your smoke detectors. Generally, detectors should be mounted on the ceiling or near the top of a wall. Use the cut-in box of the smoke detector as a guide; mark off an area and use a drywall saw to cut around it. Running and Installing Wires

How to Wire Smoke Alarms in Parallel | eHow

With the circuit complete, turn the breaker on and check your alarms to see if each one's "ready" light is lit. If they are, test your smoke alarms by pressing the "test" button on one of them. Each alarm should sound. Press it again to cancel the test, insert the backup battery in each smoke alarm and you're finished.

Smoke Detector Wiring

Whenever possible, pull smoke detector wiring so as to place the supervisory devices at the panel, instead of at the end-of-line smoke detector. This is done by using “extra” pairs of wires to provide a return path from the last smoke in the run to the main alarm panel.

how to wire smoke detectors in series diagram

Smoke alarm interface how do i install hardwired brk alarms hard wired detectors diagram mains powered detector wiring schematic napco technical library home run 4 wire and nx 8 doityourself com in series roti literaturagentur yz 8132 Smoke Alarm Interface How Do I Install Hardwired Brk Alarms Hard Wired Smoke Detectors Diagram Mains Powered Alarm How Do I… Read More »

Apollo Smoke Detectors Series 65 Wiring Diagram

Description: Series 65 Smoke Detector Wiring Diagram Apollo Series 65 Smoke within Apollo Smoke Detectors Series 65 Wiring Diagram, image size 583 X 337 px, and to view image details please click the image.. Here is a picture gallery about apollo smoke detectors series 65 wiring diagram complete with the description of the image, please find the image you need.

How do smoke detectors intercommunicate? | HowStuffWorks

If you buy an AC-powered smoke detector today, it will have three wires -- black, white and red. Black accepts 120 volts AC, white is neutral, and red is the intercommunication wire.
