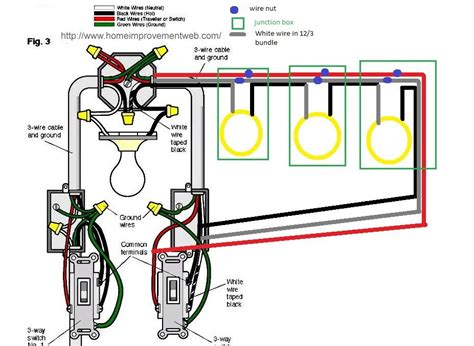

Wiring a 3 Way Switch with Multiple Lights In this circuit, two light fixtures are shown but more can be added by duplicating the wiring arrangement between the fixtures for each additional light. Here the source is at the first switch, SW1, and 3-wire cable runs from there to the first light, L1.

Wiring Diagram For 3 Way Switch With Multiple Lights ...

In other words, a 3 way switch is made up of one light that’s controlled by two separate switches. The most important rationale is that there are several ways that a three way switch can be wired. Wiring a 3 way switch isn’t that difficult. The answer to how it works, is to have an […]

3

3-Way Switch Diagram (Multiple Light Between Switches #2) - (pdf, 79kb) Back to Wiring Diagrams Home. Click the icons below to get our NEC ® compliant Electrical Calc Elite or Electric Toolkit, available for Android and iOS. The Electrical Calc Elite is designed to solve many of your common code-based electrical calculations like wire sizes, voltage drop, conduit sizing, etc.

3 Way Switch Diagrams for Multiple Lights

3 Way Switch Diagrams for Multiple Light Fixtures: It is true that there are several wiring configurations for wiring 3-way light switches, and all of the wiring configurations will depend on where the incoming circuit power is located and once that is identified the rest of the three way wiring connections are straight forward.

Multiple Light Switch Wiring

Two Switch Box Wiring Image. It is not unusual for the wires inside of an outlet box to be covered by spray paint from the initial construction of a dwelling. Common wire is wrapped three times around the two traveler wires for the 3-way switch on the right. Multiple Switch Wiring 3-Way and Single Pole

3

3-Way Switch Wiring Diagram Line to Light FixtureLine voltage enters the light fixture outlet box. No longer allowed after 2011 NEC (if no neutral wire in switch boxes) 3-Way Switch Wiring Diagram Light Fixture Between SwitchesLine voltage enters the first 3-way switch outlet box, light fixture is located between switch boxes.No longer allowed after 2011 NEC (if no neutral wire in switch boxes)

How To Wire a 3

Wiring a 3-Way Light Switch. Wiring a 3-way light switch is certainly more complicated than that of the more common single-pole switch, but you can figure it out if you follow our 3-way switch wiring diagram.. With a pair of 3-way switches, either can make or break the connection that completes the circuit to the light.

Light Switch Wiring Diagrams

Multiple Light Wiring Diagram. This diagram illustrates wiring for one switch to control 2 or more lights. The source is at SW1 and 2-wire cable runs from there to the fixtures. The hot and neutral terminals on each fixture are spliced with a pigtail to the circuit wires which then continue on to the next light.

3 Way Switch Wiring Diagram

Take a closer look at a 3 way switch wiring diagram. Pick the diagram that is most like the scenario you are in and see if you can wire your switch! This might seem intimidating, but it does not have to be. With these diagrams below it will take the guess work out of wiring. Interested in a 4 Way Switch Wiring Diagram?

3 Way Switch Wiring Diagram | House Electrical Wiring Diagram

Now discussing 3-way light switch wiring diagram as also discussed above the color codes of the wires as having three insulated conductors as black as hot, red as switch wire or called traveler and white as common wire as also shown when light is connected to both black and white wires.
