Wiring Diagrams for Switched Wall Outlets

Wiring an Outlet to a Switch Loop. This wiring diagram illustrates adding wiring for a light switch to control an existing wall outlet. The source is at the outlet and a switch loop is added to a new switch. The hot source wire is removed from the receptacle and spliced to the red wire running to the switch.

Switched Outlet Wiring Diagrams | Mr. Electrician

Wiring diagram of a switched electrical receptacle outlet and an unswitched electrical receptacle outlet with the power entering the switched outlet electrical box from the circuit breaker panel. The single pole switch has a neutral conductor for future electronic controls such as a timer or a WiFi switch.

How To Wire An Electrical Outlet Wiring Diagram | House ...

How to wire an electrical outlet wiring diagram ,Wiring an electrical outlet / receptacle is quite an easy job. If you are fixing more than one outlet, ... look for 4 way switch wiring diagram or step how to wire a four way light switch electrical circuit A 4 way switch is a double pole d... Blog Archive

How to Wire Combo Switch & Outlet? Combo Device Wiring

Socket Outlet Wiring Diagrams; Wiring a Light bulb with Combo Switch and Outlet. In this simple wiring diagram, the combo switch & outlet is connected to the 120V AC supply through CB. The break away fin tab is intact therefore, line (hot) is connected to the (only) one brass terminal on line side. The neutral is connected to the neutral silver ...

Wiring For A Light Switch and Outlet

Switched Outlet Wiring Diagrams This switched outlet wiring diagram shows two scenarios of wiring for a typical half hot outlet that can be used to control a table or floor lamp. Electrical outlet wiring Wiring Electrical Outlet for the Home Home electrical wiring includes 110 volt outlets and 220 volt outlets and receptacles which are common ...

How to Wire an Outlet Receptacle? Socket Outlet Wiring ...

The following wiring diagrams show that multiple outlets are wired to a single pole (SPST switch, one-way or two way in US) switch. As shown in the fig, the switch is firstly installed in the wiring the hot wire from switch feeds all the other parallel connected outlets hence, the outlet ON/OFF operation can be controlled through the switch.

Switch Outlet Wiring Diagrams

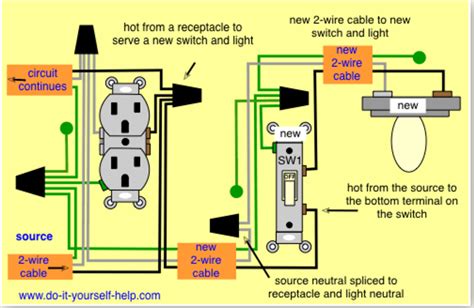

These electrical wiring diagrams show typical connections. The diagram below shows the power entering the circuit at the grounded outlet box location, then sending power up to the switch and a switched leg back down to the outlet.
