Wiring A Light Switch And Outlet In Same Box

How to Install a Switch & Convenience Outlet in the Same Box

Wiring a light switch and outlet on the same circuit is something that electricians do regularly. They often run wires from the switch to a remote outlet, but there's no reason why the switch and outlet can't be in the same electrical box.

How to wire a light switch and outlet in the same box

It depends how you want the switch and receptacle to function. If you want the receptacle to be powered all the time, and want to use the switch to control a load other than the receptacle (such as a light fixture), you wire it like this: On the o...

Wiring a Switch and Outlet the Safe and Easy Way | Family ...

Find circuit breakers by plugging a loud radio into the outlet you’re working on. You’ll know you have the right circuit breaker when the music dies. But don’t assume the electricity is off in all the other outlets or lights in the room. Before doing any wiring, plug the radio into other outlets you plan to work on.

Wiring Diagrams Double Gang Box

Wiring a GFCI Outlet and a Light Switch in One Box. This diagram illustrates wiring a GFCI receptacle and light switch in the same outlet box, a common arrangement in a bathroom with limited space. The hot source is spliced with a pigtail to the LINE terminal on the receptacle and to on terminal on the light switch.

Wiring Lights And Outlets On Same Circuit Diagram | Wiring ...

Electrical – How Do I Wire A Light Switch And Outlet In The Same Box – Wiring Lights And Outlets On Same Circuit Diagram. Wiring Diagram not merely gives in depth illustrations of everything you can perform, but in addition the methods you need to stick to although doing so.

Wiring For A Light Switch and Outlet

When the wiring connections are made properly there is always the possibility for the wiring in a switch box to provide power for a light switch while providing power to outlets on the same circuit. You just need to keep track of the wire designations and make the spliced connections to support the devices you are connecting to.

How to install an extra light with a switch and an outlet ...

Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.

How do I wire a light switch and outlet in the same box?

I have a single gang box in a bathroom with a GFCI outlet. I'd like to replace it with a 2-gang box containing a GFCI outlet and a light switch for the vanity light. The outlet will have both receptacles live (not switched). The vanity light currently is not switched; it is controlled by a pull-chain on the light itself.

How to Wire Combo Switch & Outlet? Combo Device Wiring

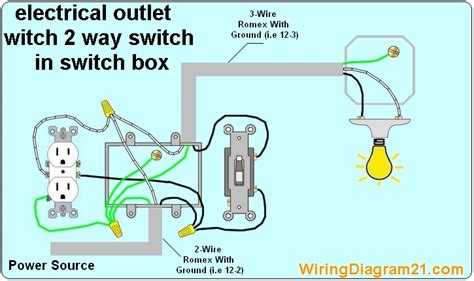

Socket Outlet Wiring Diagrams; Wiring a Light bulb with Combo Switch and Outlet. In this simple wiring diagram, the combo switch & outlet is connected to the 120V AC supply through CB. The break away fin tab is intact therefore, line (hot) is connected to the (only) one brass terminal on line side. The neutral is connected to the neutral silver ...

Light Switch Wiring Diagrams

This page contains wiring diagrams for household light switches and includes: a switch loop, single-pole switches, light dimmer, and a few choices for wiring a outlet switch combo device. Also included are wiring arrangements for multiple light fixtures controlled by one switch, two switches on one box, and a split receptacle controlled by two switches.
