The treble bleed circuit is one of the easiest mods that you can perform on your guitar. It’s one that might require extensive experimenting, however, before you’re able to get it perfect. The treble bleed is meant to preserve treble loss as you turn down the volume control on your guitar.

Golden Age Treble Bleed Circuit | stewmac.com

Hand-soldered here in our shop: a 150K-ohm 1/4-watt resistor (1% tolerance) in parallel with a .001uF capacitor. Wire this simple mod between the input and output lugs of your guitar volume control pot, to smooth out treble bleed. Get more uniform tone from 1 to 10, and a more rounded sound at low volume.

Treble Bleed Circuits

Option 3 uses similar values in a series configuration. For example the Kinman treble bleed calls for a 130K Ohm resistor and 1.2nF capacitor. In fact resistor values of between 50-100% of the tone potentiometer value will suit most ears and provide a less pronounced treble bleed than the 'capacitor only' option 4.

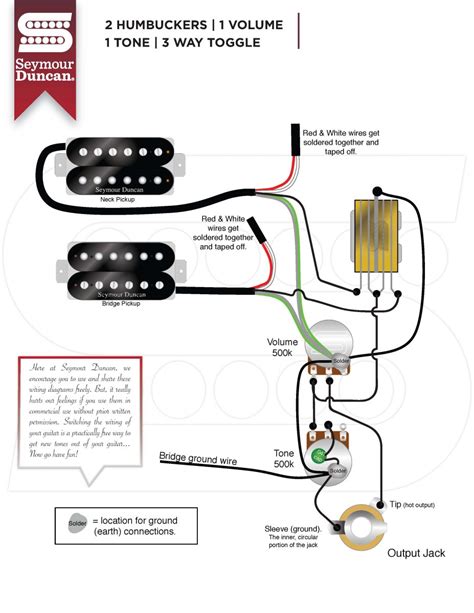

Treble Bleed Wiring Diagram For Humbucker

Volume Treble Bleed Bypass Circuit W Series Resistor

The Guitar Wiring Blog

The treble bleed mod is a circuit which can help you keep the treble in the guitar signal, when you're turning down the volume potentiometer. Probably you know, that when the volume pot knob is turned a little bit down, the guitar signal is quieter and also darker or smoother – it's loosing some high frequencies.

How a Treble

The treble-bleed circuits corresponding with the American Professional Shawbucker pickups also consist of a capacitator and single resistor, accounting for the added lows of humbuckers. “The Shawbuckers are thicker,” Parrish said. “While rolling down on the volume, the lows come up, so I wanted to push them back down a little to level out the sound.”
