Complete with a color coded trailer wiring diagram for each plug type, this guide walks through various trailer wiring installation solution, including custom wiring, splice-in wiring and replacement wiring. If your vehicle is not equipped with a working trailer wiring harness, there are a number of different solutions to provide the perfect fit for your specific vehicle.

Trailer Wiring Diagram and Installation Help

Trailer Wiring Diagram and Installation Help - Towing 101. September 2020. Complete with a color coded trailer wiring diagram for each plug type, this guide walks through various trailer wiring installation solution, including custom wiring, splice-in wiring and replacement wiring.

Trailer Wiring Diagram Help

Trailer wiring diagrams etrailer com diagram lights brakes routing wires connectors and installation help towing 101 how to wire guide s 7 way aj truck center 5 boat base website 4circlevenndiagram chmelnizki de for trailers north texas fort worth labelledeyediagram associazionecicogna it technical information Trailer Wiring Diagrams Etrailer Com Trailer Wiring Diagram Lights Brakes Routing ...

Trailer Wiring Diagram

The trailer wiring diagrams listed below, should help identify any wiring issues you may have with your trailer. When shopping for trailer connectors remember that the male end is mounted on the vehicle side and the female on the trailer side. Trailer Wiring Videos.

trailer wiring diagram help | Wirings Diagram

Find your trailer wiring diagram help here for trailer wiring diagram help and you can print out. Search for trailer wiring diagram help here and subscribe to this site trailer wiring diagram help read more!

Trailer Wiring Diagrams | etrailer.com

Trailer Wiring Diagrams Trailer Wiring Connectors. Various connectors are available from four to seven pins that allow for the transfer of power for the lighting as well as auxiliary functions such as an electric trailer brake controller, backup lights, or a 12V power supply for a winch or interior trailer lights.

Trailer Wiring Diagram – Lights, Brakes, Routing, Wires ...

Typical Trailer Wiring Diagram and Schematic. These 2 wire diagrams fit the needs of most trailers. The image above shows a single axle trailer, and the next image shows wiring for Tandem Axles. Only the (blue) brake and (white) ground wires are different. Expand the same for additional axles. Use only the needed wires, and ignore the others.

Wiring Diagrams

View our Electrical Wiring Diagram Guides for Towbar Fitting to power trailer lights and internal caravan electrics. For more help please call 0330 333 1525.

How to Rewire an Old Cattle Trailer | etrailer.com

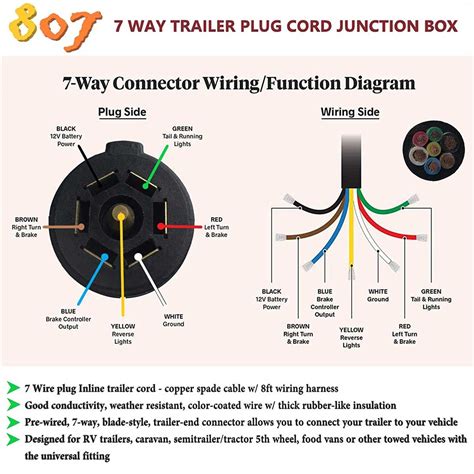

Another option that you have is to wire the 7-way connector using the traditional color code. I attached a diagram that shows how the 7-way connector can be wired to stay with the traditional color codes. I have also attached a wiring help article that has information on trailer wiring.

How To Repair or Replace 4

Learn how to repair a trailer wiring harness that was damaged when borrowed by someone who did not connect the wiring to their vehicle. This is a very simple...
