Australian Trailer Plug and Socket Pinout Wiring 7 pin Flat and Round. by Daniel Bingham. Here’s the wiring diagrams showing the pin out for the plug and socket for the most common circle and rectangle trailer connections in use in Australia.

How to wire a 7 pin trailer plug (diagram shown)

How to wire a 7 pin trailer plug (diagram shown)

7 Way Plug Wiring Diagram

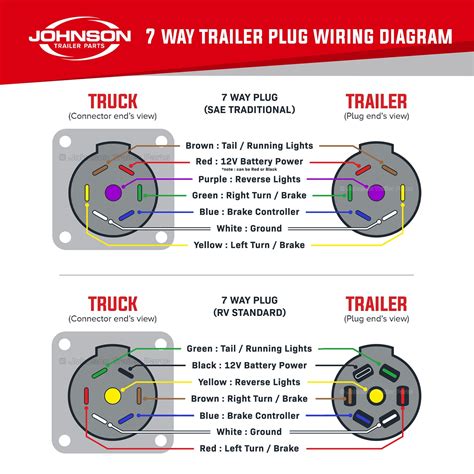

7 Way Plug Wiring Diagram Standard Wiring* Post Purpose Wire Color TM Park Light Green (+) Battery Feed Black RT Right Turn/Brake Light Brown LT Left Turn/Brake Light Red S Trailer Electric Brakes Blue GD Ground White A Accessory Yellow This is the most common (Standard) wiring scheme for RV Plugs and the one used by major auto manufacturers today.

7 Pin Round Trailer Wiring Diagram | Free Wiring Diagram

Variety of 7 pin round trailer wiring diagram. A wiring diagram is a simplified standard pictorial depiction of an electric circuit. It reveals the parts of the circuit as simplified forms, as well as the power and also signal links between the tools.

7 pin ‘N’ type trailer plug wiring diagram

7 pin ‘N’ type trailer plug wiring diagram 7 pin trailer wiring diagram The 7 pin N type plug and socket is still the most common connector for towing. This ...

7 pin 'N' type trailer plug wiring diagram | UK

Here are two wiring diagrams for the 7 pin ‘N’ type trailer electrical plug. The first diagram is a simple set up of two brake lights, two indicators and two side lights. Click on the image below to enlarge it. The second diagram shows two brake lights, two indicators, two side lights and a fog light. Click on the image below to enlarge it.

How to Wire a 7

Wiring a 7-pin plug on your truck can be a little intimidating when you are looking at it from outside the box. There is a lot wiring that you have to tie into your truck's wiring harness, but it is easier to do than it seems.

Wiring Trailer Lights with a 7

The minimum suggested wire size for a 7-way trailer plug is 16 gauge for the turn signals, brake lights, reverse lights, and running light wires. The suggested minimum for the ground, brake power, and battery hot lead wires is 12 gauge.

Narva | Trailer Plug Wiring Guide

A colour coded trailer plug wiring guide to help you require your plugs and sockets. Includes guides for 7 pin, 6pin, 5 pin, 12 pin, 13 pin, pin and heavy duty round plugs and sockets.
