Attach the telephone jack to your Network Interface Device box. You'll use the colored screw sections in the Network Interface Box to do this: Clip the end of the phone cable off. Strip an inch off of the end of each of the colored wires. Separate the green wire and the red wire.

Telephone Network Interface Wiring Diagram Download ...

telephone network interface wiring diagram – Building electrical wiring layouts show the approximate places and also affiliations of receptacles, lighting, and irreversible electric services in a structure. Adjoining wire paths might be shown about, where specific receptacles or fixtures have to get on a common circuit.

Network interface device

In telecommunications, a network interface device (NID; also known by several other names) is a device that serves as the demarcation point between the carrier's local loop and the customer's premises wiring. Outdoor telephone NIDs also provide the subscriber with access to the station wiring and serve as a convenient test point for verification of loop integrity and of the subscriber's inside wiring.

Telephone Network Interface Wiring Diagram | Free Wiring ...

Telephone Network Interface Wiring Diagram - Collections Of Wiring A Telephone Junction Box Diagram New Wiring Diagram for Phone. Rj12 Telephone Wiring Diagram Australia New Phone Jack Wiring. Telephone Cable Wiring Diagram Australia Save Wiring Diagram. Lovely Telephone Network Interface Wiring Diagram Pics.

Connecting to the Interface

Inside the Network Interface Device. Unscrew the Network Interface cover at the Customer Access point with a screwdriver and open. Refer to - Testing the Telephone Service . Disconnect your inside wiring from Ironton Telephone Company's lines by removing the modular plug from the jack. For a New Installation. Punch a hole through the grommet and pass the wiring through the hole.

WITC Broadband Academy Network Interface Device (NID ...

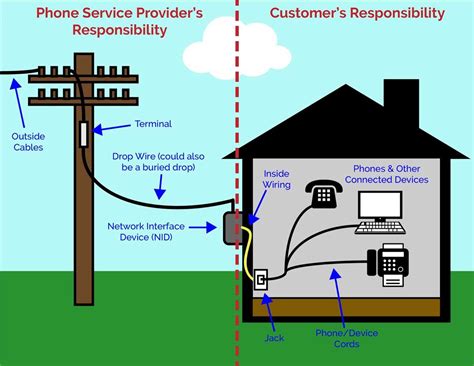

Network Interface Device is a point of demarcation and test point for the provider and customer.
