Powermaster Starter Wiring Diagram. 21.10.2018 21.10.2018 2 Comments on Powermaster Starter Wiring Diagram. Torque starter mounting bolts to engine manufacturer's specifications, Insert a wire gauge to check for proper clearance between the ring gear and starter.

Starter Installation Instructions

(See Website for optional wiring diagram) Troubleshooting Problem Cause Solution - My new starter has more/less teeth then my OE unit We specifically engineer each starter block to work with the specified ring gear. This means depending on the starter used a 9,10,11 tooth gear may all fit the same application. - You’re good to go!

Powermaster Alternator Wiring Diagram

Powermaster starter diagram furthermore ford diesel tractor wiring diagram furthermore ford mercury and thunderbird also plymouth valiant wiring diagram diagrams instruction corvette headlight further ford 8n 12v wiring harness in addition i62 photobucket albums h89 jayhawkclint charging circuit2 furthermore p cdb3f7 as well as mustang wiring diagrams in addition.

Powermaster Alternator Wiring Diagram | Wirings Diagram

Powermaster Alternator Wiring Diagram – powermaster 3 wire alternator wiring diagram, powermaster alternator wiring diagram, powermaster alternator wiring diagram ford, Every electric structure is composed of various distinct pieces. Each part ought to be set and connected with other parts in particular manner. If not, the structure will not work as it should be.

Powermaster Alternator Wiring Diagram | Free Wiring Diagram

Variety of powermaster alternator wiring diagram. A wiring diagram is a simplified standard pictorial representation of an electric circuit. It reveals the parts of the circuit as streamlined forms, as well as the power and also signal connections between the gadgets.

PMGR Starter & Relay Wiring

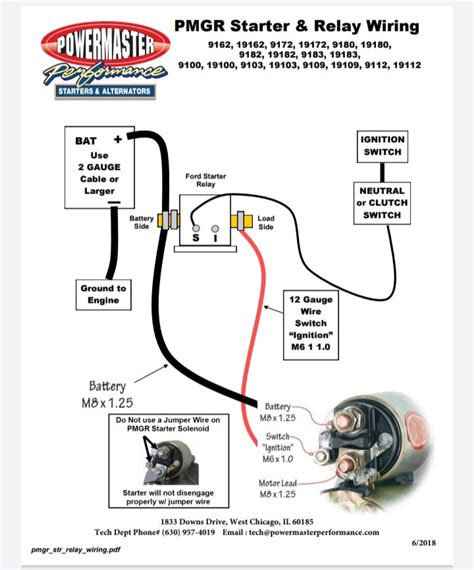

PMGR Starter & Relay Wiring. I . 12 Gauge . Wire . Switch “Ignition” M6 1 1.0 . Battery . Terminal . Ground to . Engine . Battery Load. Side Side. Ford Starter. Relay. 1833 Downs Drive, West Chicago, IL 60185 Tech Dept Phone# (630) 957-4019 Email : tech@powermasterperformance.com 6/2018

Wiring Diagrams

Wiring Diagrams - Wiring Diagram 6100 Wiring Diagram- UMCB-01 CTRL LED DIP UMCB-01 CTRL WIRING DIAGRAM 5633 DR WIRING DIAGRAM 5631 DR Wiring Diag

Starters

PowerMAX Starters. Instruction Sheet. 19162. Chrome Ford PMGR Starter 289-302-351W/C A/T & 5-speed M/T. 027. 19172. Chrome Ford PMGR Starter 289-302-351W/C 3 and 4-speed M/T. 027. 19180. Chrome Ford PMGR Starter 4 cylinder only (2300 cc) 0227. 19182. Chrome Ford PMGR Starter 351M-400-429-460. 0227. 19200. Chrome Chevy Mini [PMGR style] w/Chrome ...
