Description: USB wiring is simple but not that simple this is because on changing the frame of reference the pinout looks changed.Observe the above pinout the front end is different than that of back end and thus it requires to check the connectivity of both ends with a digital multimeter (above micro USB pinout made it simple for you).

Micro

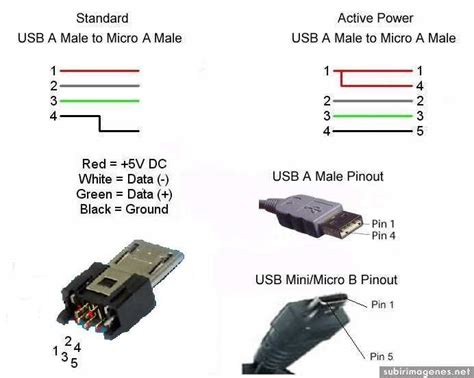

micro USB pinout signals. USB is a serial bus. Micro-USB cable uses 4 shielded wires: two for power (+5v & GND), two for differential data signals (labelled as D+ and D- in pinout). NRZI (Non Return to Zero Invert) encoding scheme used to send data with a sync field to synchronise the host and receiver clocks.

Micro USB Pinout, Because Everything is Terrible — Never ...

You would think that companies would supply clear pin-out diagrams for their USB connectors. ... Micro USB Pinout, Because Everything is Terrible. ... You would think that when a great company sells a micro USB plug, they would publish a very clear, concise guide on how to wire it up. Well, ...

USB Wiring Diagram

Usb 2 Wiring Diagram – ps/2 to usb wiring diagram, usb 2 cable wiring diagram, usb 2 wiring diagram, There are many types of electronic gadgets on the market. Most of them utilize USB cable. The cable can be utilized to transfer information from 1…

Micro

Pinout of Micro-USB charger cableshould charge most phones and other devices equipped with micro-USB connector. Pinouts / Devices / Connectors. ... USB cable wiring pinout; NO DIY devices. Micro-USB charger cable visual pinout: click to enlarge. Last updated 2018-05-14 21:26:37. ...

Micro Usb Wire Diagram

Description: Wiring Diagram Micro Usb Connector Connections | Alexiustoday throughout Micro Usb Wire Diagram, image size 631 X 480 px, and to view image details please click the image.. Here is a picture gallery about micro usb wire diagram complete with the description of the image, please find the image you need. We hope this article can help in finding the information you need. micro usb ...

Micro B USB Jack Pinout, Specifications, Connections ...

The micro USB Jack has five pins through which the power and data is transferred, the 4th pin ID is used for mode detection, this indicates if the USB is used only for power or for data transfer. Of the remaining four pins two pins (pin 1 and Pin 5) are used to provide the Vcc and Ground.

USB Connector Pinouts

USB Connector Pinouts. USB is a serial bus. It uses 4 shielded wires: two for power (+5v & GND) and two for differential data signals (labelled as D+ and D- in pinout). In a USB data cable Data+ and Data- signals are transmitted on a twisted pair with no termination needed.

USB pinout, wiring and how it works!

USB A, B 2.0 and 3.0 Cable Pinout. The USB cable provides four pathways- two power conductors and two twisted signal conductors. The USB device that uses full speed bandwidth devices must have a twisted pair D+ and D- conductors. The data is transferred through the D+ and D- connectors while Vbus and Gnd connectors provide power to the USB device.

USB pinout diagram @ pinouts.ru

Pinout of USB and layout of 4 pin USB A or USB B plug connector and 4 pin USB A / USB B / mini-USB jack connectorUSB (Universal Serial Bus) designed to connect peripherals such as mice, keyboards, scanners, digital cameras, printers, hard disks, and networking components to PC. It has become the standard connection method for wide variety of devices.
