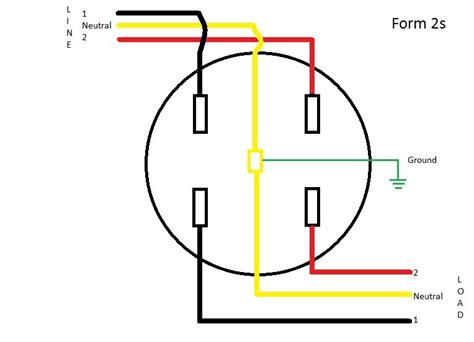

The Form 2s Meter Wiring Diagram. Ok, now that we know where the form 2s meter is installed let’s take a look at the form 2s meter wiring diagram. Notice that the form 2s meter is what is known as a self-contained meter form. This means that the meter is in series with the load.

Meter Forms

Form 2s. The form 2s is by far the most common meter form out there. This meter is most commonly used in a 240v, single phase three wire service. This is the meter that most people will find on their homes. This form is also used for many small businesses as well. Click here for a form 2s meter wiring diagram. Form 3s.

ANSI METER WIRING DIAGRAMS

2S Wiring Diagram 1 PH, 3 WIRE GLEMS would like to thank and acknowledge the use of the following meter connection diagrams from Dr. Bill Hardy, TESCO. Be aware that these are general diagrams using standard test switches which may not match some Utility standards in their configuration and are for reference only.

Metergod Monday

This video is the latter half of our 11/17/14 Session. I introduce the 2S Meter Form related question and prove how the 2S meters Phase to Neutral & Phase to...

Wiring Diagrams

Wiring Diagrams. Not all installations are created equal. Search through our list of wiring diagrams to find the right one for your job. Single Phase – Form 2S for 120V Circuit. FORM 2S Need a meter for a 120 volt circuit? Order our 240 volt meter. This diagram shows how to wire it for 120V.

Hialeah Meter Co. Wiring Diagram for 120V, 2 Wire Service ...

Demonstration to wire a Single Phase, FM 2S, 240V, 200A, 3 Wire, electric meter for a 120V, 2 Wire Service.

Meter Connection Diagrams – GLEMS

Form 9S Meter – VT; Meter Wiring Diagrams, provided by TESCO. ANSI Meter Wiring Diagrams; The Great Lakes Electric Meter School (GLEMS) began in 1989 with a committee composed of members of electric utilities, electric utility manufacturers, and experts in the utility field.

Form 9s Meter Wiring Diagram

N diagramweb.net Search through our list of wiring diagrams to find the right one for your job. Single Phase – Form 2S for V Circuit. FORM 2S Need a meter for a volt circuit? Order our volt meter. This diagram shows how to wire it for V. Click here to view and print the full size diagram. Form 9s.

Metering Data

Meter Mounting Equipment 126 Energization of Electrical Equipment ... Form 1S & 2S 5-Terminal Form 3S 7-Terminal Form 14S, 15S, 16S, 17S, 24S 8-Terminal Form 5S, 35S, 45S 15-Terminal Form 11S, 39S, 76S 13-Terminal ... Wiring Diagrams. Metering Data Data subject to change without notice.

ALPHA meter

2 Wire the meter. See the wiring diagrams beginning on page 3. If the wire diagram is larger than the ... Installation wiring All available ALPHA meter forms are listed and separated with respect to the type of service being ... Form 2S 1 phase, 3 wire, self–contained 20E01 Form 3S 1 phase, 2 wire, 1 CT, no PTs 29A02 N 1
