7-Way rV blade connecTor Wiring diagraM 7-Way Molded Trailer connecTor & cable BLACK BLUE RED BROWN WHITE YELLOW TRAILER END As viewed from front face of 7-way connector with molded on cable. GREEN 7 - W a y W i r e c o l o r Wire color & gauge White / 10 gauge Blue / 12 gauge Green / 14 gauge Black / 10 gauge Red / 14 gauge Brown / 14 gauge ...

7

Pictured below is the RV 7-way flat-pin umbilical connector, also called the 7 pole plug, which is the connector style most commonly used on RV travel trailers and fifth wheels This connector is made by many companies but they are supposed to be interchangeable and the wiring color code is observed among the various brands.

Wiring Trailer Lights with a 7

A 7-way plug connects your trailer and tow vehicle and provides the required lights, turn signals, brake power, battery hot lead, reverse lights, and ground. Most of us aren't electricians, but that doesn't mean wiring a trailer or replacing corroded wiring is beyond us. We'll walk you through the wiring process--it's easier than you think!

7 Way Plug Wiring Diagram

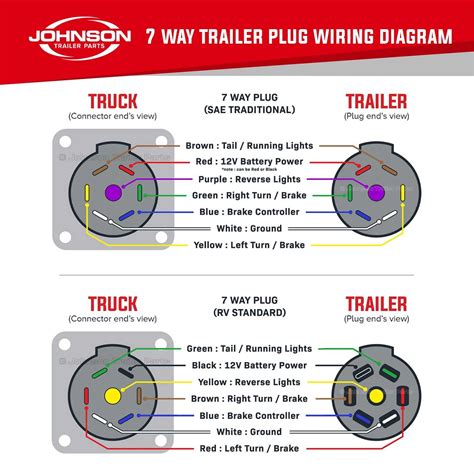

7 Way Plug Wiring Diagram Standard Wiring* Post Purpose Wire Color TM Park Light Green (+) Battery Feed Black RT Right Turn/Brake Light Brown LT Left Turn/Brake Light Red S Trailer Electric Brakes Blue GD Ground White A Accessory Yellow This is the most common (Standard) wiring scheme for RV Plugs and the one used by major auto manufacturers today.

7

When wiring a trailer connector, it is best to wire by function, as wire colors can vary. We have an excellent wiring diagram on our website, I will provide you a link so you can look at it. If you are looking at the inside of the trailer connector where the wires mount to the terminals starting at the top and rotating clockwise:

Wire Colors and Functions of Hopkins 7

7-Way Diagram for 7-Way of 2014 Mercedes Sprinter 3500; How is Length of 7-Way Connector Lead Determined for Wiring Up Trailer; Are All 7 Way Blade Connectors the Same; Replacing Damaged 7-Way on Horse Trailer; How to Make 6-Way Square to 7-Way Adapter ; Recommended 7-Way Round Trailer Connector And Wiring; Adding a Battery to a Snowmobile ...

Color Clarification Regarding Wiring Issues of a 7 pin ...

Figuring out what color wire goes to what function is sometimes quite confusing. I have attached a diagram which covers both the most common wire colors designated for a seven pin trailer connector and a seven pin vehicle connector, referencing the wiring colors for each blade and what each blade is responsible for.
