Parallel Ballast Wiring

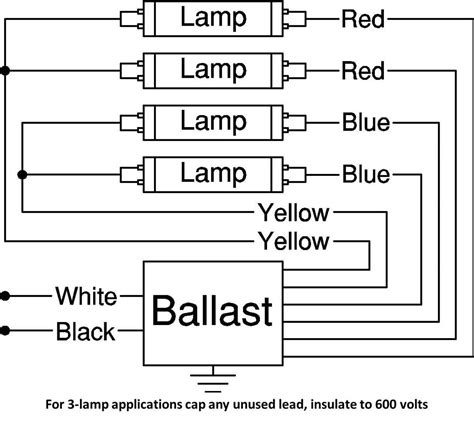

Parallel ballasts use a single wire for connections to each end of a fluorescent tube. A shunted lampholder connects the lamp pins together. Generally instant start ballasts are wired in parallel.. 2 and 3 Lamp Parallel Ballast Wiring. 2 and 3 lamp parallel ballasts use blue wires for individual connections, and red wires for common connections.

How to Replace 4 Lamp Two Series Ballasts with Parallel

Light Fixtures with Two Ballasts. A 4 lamp fixture with two series ballasts can be replaced with a 4 lamp parallel ballast. As seen below, connecting the 4 lamp parallel ballast to the four lamps can be a bit confusing. This is because the wire colors on the ballast and the lampholders do not match up on two of the connections.

Parallel Ballast Lampholder Wiring

On ballast 2, the individual wires are connected to the lampholders of lamps 1 and 3 on the right side, and the common wires to lamps 1 and 3 on the left. 3 Lamp Instant Start Two Ballasts Lampholder Wiring Diagram. Using one 1 lamp and one 2 lamp parallel ballast.

Ballast Wiring

With some 3 and 4-lamp series-parallel ballasts, if a single lamp in one branch fails, the lamp(s) in the parallel branch will continue to operate. Series ballasts can only be wired in series according to the diagram on the ballast. Parallel ballasts can only be wired in parallel according to the diagram on the ballast. Changing the wiring on a ...

T8 Fluorescent Ballast Wiring Diagram

T8 led lamps q a retroing ballasts tombstones how to replace 2 lamp series ballast with parallel electrical 101 fluorescent lampholder wiring converting light fixtures from t12 bulbs sign smart wire keystone technologies repair replacement connections diagram search diagrams or no that is the question senior 1 running 4 universal lighting ultim8 b432iunvhe triad T8 Led Lamps Q… Read More »

How to Replace 3 Lamp Parallel Ballast

Replace 3 Lamp Instant Start Ballast with 4 Lamp Instant Start. In this example, a fixture with a 3 lamp parallel ballast is replaced with a 4 lamp parallel ballast. The colors of the old and new ballasts do not match. This replacement can be difficult to do unless a person totally understands how this wiring works.
