2004 Cavalier Stereo Wiring Color Code

2004 Chevrolet Cavalier | Stereo Wiring Diagram

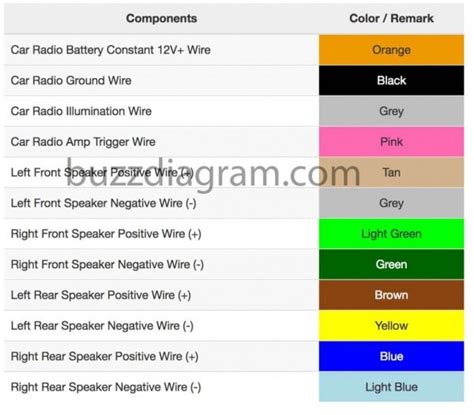

2004 Chevrolet Cavalier Stereo Wiring Information. Radio Battery Constant 12v+ Wire: Orange Radio Ground Wire: Black Radio Illumination Wire: Gray Stereo Amp Trigger Wire: Pink Left Front Speaker Positive Wire (+): Tan Left Front Speaker Negative Wire (-): Gray Right Front Speaker Positive Wire (+): Light Green Right Front Speaker Negative Wire (-): Dark Green

2004 Cavalier Stereo Wiring Color Code PDF File ...

And by having access to our ebooks online or by storing it on your computer, you have convenient answers with 2004 Cavalier Stereo Wiring Color Code . To get started finding 2004 Cavalier Stereo Wiring Color Code , you are right to find our website which has a comprehensive collection of manuals listed.

2001 Chevrolet Cavalier | Stereo Wiring Diagram

2001 Chevrolet Cavalier Stereo Wiring Information. Radio Constant 12v+ Wire: Orange Radio Ground Wire: Black Radio Illumination Wire: Gray Left Front Speaker Positive Wire (+): Tan Left Front Speaker Negative Wire (-): Gray Right Front Speaker Positive Wire (+): Light Green Right Front Speaker Negative Wire (-): Dark Green Left Rear Speaker Positive Wire (+): Brown

2003 Chevy Cavalier Wiring Harness Diagram

0499fb4 2004 chevy cavalier radio wiring harness resources 2003 pontiac sunfire headlight diagram stereo silverado color code e27 1b35 library 47f91 99 2 4 engine 2001 service light tunkie 03 poli www niiid sauber de 2000 chevrolet venture e24 2l e30 1e3 fuse box 0499fb4 2004 Chevy Cavalier Radio Wiring Harness Resources 2003 Pontiac Sunfire Headlight Wiring Harness… Read More »

2004 Chevy Cavalier Stereo Wiring Diagram | Wirings Diagram

2004 Chevy Cavalier Stereo Wiring Diagram – 2004 chevy cavalier car stereo wiring diagram, 2004 chevy cavalier factory radio wiring diagram, 2004 chevy cavalier stereo wiring diagram, Every electrical structure is composed of various different components. Each component ought to be set and linked to other parts in particular manner. Otherwise, the structure will not function as it shoul

SOLVED: Color code for wiring a 2005 cavalier stereo we ...

Color code for wiring a 2005 cavalier stereo we clipped the harness from car and we did the speaker wires tan grey dk gr lt gr brown yellow dk blue lt blue Blk for grounds what r grey orange n purple. Posted by haylee on Apr 20, 2015. Want Answer 1. Clicking this will ...
